Digital Sight DS-L4

DS-L4 - Compact and easy-to-operate, tablet-type camera control unit for microscopes

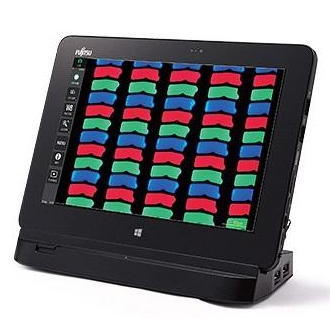

The DS-L4 tablet-style control unit eliminates the need and space requirements of a desktop PC to control the DS-Fi3 camera. DS-L4 has a large number of built-in functions for measurement and annotations, and has built-in security for network connectivity.

nikon metrology industrial microscopes cameras controller DS L4

nikon metrology industrial microscopes cameras controller DS L4

Specifications

Connectable cameras*1	DS-Fi3
Live image	FULL (resolution emphasized), FAST (display frame rate emphasized) Format: RGB 24bits
Exposure control	Program AE/Focus AE/Manual AE, with AE lock function
Brightness adjustment	Exposure mode AE: Exposure compensation adjustment, Exposure mode manual AE: Exposure time or gain adjustment
Exposure metering	Average metering, Peak hold metering
Exposure metering area	Position/size variable
White balance	One-push operation
Image correction	Tone, sharpness, black level, hue, chroma, R/B adjustment, shading correction*2, special effect
Scene mode	LED/halogen, biological/industrial/asbestos/standard Custom: Up to 7 types can be registered
Recording format	Color space: sRGB Still image: TIFF/JPEG/DICOM Movie: AVI
Saving destination	Internal drive (flash memory 64GB, approx. 28GB available) /microSD/USB memory/SMB file server
Measurement/drawing/scale	Measurement target: Point-to-point distance, perpendicular line length, angle, circle, distance between center points of two circles, area Measurement unit calibration registration: Auto registration calibration by objective information setting (seven types registerable) Manual registration calibration: Manual calibration/optical calibration by entering objective magnification (14 types registerable) Drawing: Text, line, arrow, pen, marker, scale bar Scale: Cross, glid line, X scale (cross scale), XY scale
Microscope control*3	Biological microscope: Ni-E/Ni-U/Ci-E Industrial microscope: LV150NA/LV100DA-U/LV100NDA Stereo microscope: SMZ25/SMZ18/SMZ1270i
Supported language	English, Japanese
Security	Anti-virus: McAfee Embedded Control is preinstalled. Programs that can run are restricted by the whitelist method User login method: With DS-L4 user registration, login is possible by entering user ID and password
LCD display	10.1-type wide WUXGA (1920×1200)
Interface	USB3.0 host port x1, USB2.0 port x4, Display Port, micro HDMI LAN (IEEE 802.3 10/100/1000 Base－TX, IEEE 802.11 a/b/g/n), Bluetooth, micro SD card slot
Power supply	AC100-240V 50Hz/60Hz
Power consumption	65W
Dimensions	Main body: 265 x 188 x 10mm, Including extended cradle: 265 x 201 x 107 mm
Weight	Main body: 630g (approx.), Including extended cradle: 1060g (approx.)
Operating environment	5-35℃, 20-80% RH max. (without condensation)

*1 DS-Ri2 will be able to connect to DS-L4 in January 2017.
*2 Shading correction will be available by updating a software version in January 2017.
*3 Please be contact to Nikon about connectable Microscopes.
