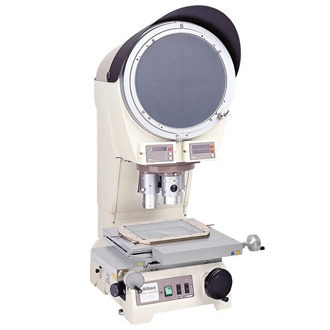

Profile Projector V-12B

Nikon's benchtop optical comparator with enhanced features for improved precision and ease of operation.
Nobody knows better than Nikon how to combine greater precision with easier operation; so you can concentrate on your project and not on your equipment. These projectors feature a 12" diameter screen and accept larger stages with higher accuracy thanks to the movable head during focusing. They are also completely user-friendly, complete with a built-in digital XY counter and digital protractor counter. What's more, the V-12B lets you easily view erect images, making the profile projector easier than ever to operate.

Applications

  • Plastic manufacturing
  • Metal manufacturing
  • Cracks and failure Analysis
Specifications
Projection screen V-12BDC and V-12BD provided with digital protractor fine rotation knob, 360° rotation (reading to 1 minute arc)
XY counter V-12BDC - Built in (1 mm/0.5 mm selectable); V-12BD - Not Provided; V-12BSC - Built in (1 mm/0.5 mm selectable); V-12BS - Not Provided
Max. height of specimen 100 mm (4.0”) with 8x6, 6x4, 4x4, O3L and 2x2
Power source (2 types) 110 VAC (50/60Hz); 220VAC (50/60 Hz)
Max. load capacity 15 kg (33.0 lb) with 8x6 and 6x4, 6 kg (13.2 lbs) with 4x4, 5 kg (11.0 lbs) with O3L, 5 kg (11.0 lbs) with 2x2
Dimensions 409 x 648 x 970-1070 mm (16.1 x 25.5 x 38.2-42.1”)
Projection lenses 5x, 10x, 20x, 25x, 50x, 100x, 200x and 500x. 3-lens turret; clamp screw type
Stage 8x6, 6x4, 4x4, O3L and 2x2
Vertical surface illumination All projection lenses feature internal half-reflecting mirrors which are prealigned to the built in vertical surface illuminator. 500x lens should be used with an EPI Condenser Lens.
Weight Approx. 80 kg (176.4 lbs)
Magnification accuracy Contour illumination ±0.1%, vertical/oblique surface illumination ±0.15%
Image Erect and unreversed
Illumination High/low light intensity control; 24V/150W halogen lamp
Oblique illumination Oblique surface illumination can be obtained by tilting EPI illumination unit
Contour illumination Telecentric type. 200x and 500x lenses should be used with a DIA Condenser Lens.
