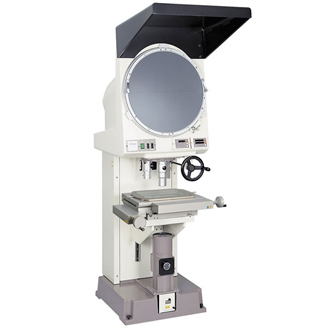

Profile Projector V20B - Large Capacity Screen 20

A larger capacity vertical projector features an effective 500mm (20”) screen and permits mounting of a large stage.
With improved image brightness and resolution, the V-20B delivers images with excellent clarity, while enabling observation in a comfortable posture. It features a large effective screen diameter of 500mm (20”) and includes a built-in digital counter and digital protractor.

Applications

  • Plastic manufacturing
  • Metal manufacturing
  • Cracks and failure Analysis
Specifications
Type Vertical optical axis
Magnification accuracy ±0.1% in contour illumination, ±0.15% in surface illumination
Power input 110 VAC, 220 VAC
Max. specimen height 150mm (5.9”)
Light source 24V-150W halogen lamp
Lens mount 3-Lens turret mount
Screen 500 mm (19.7”) diameter, protractor screen, inclined 8°
Dimensions (WxDxH) and weight (approx.) 570 x 1200 x 1900 mm (22.4 x 47.2 x 74.8“); 260 kg (573 lbs)
Projection lenses 5x, 10x, 20x, 50x & 100x
Stages 8x6, 6x4, 4x4, O3L, 2x2
Image Inverted and reversed
