Pro Scan lll

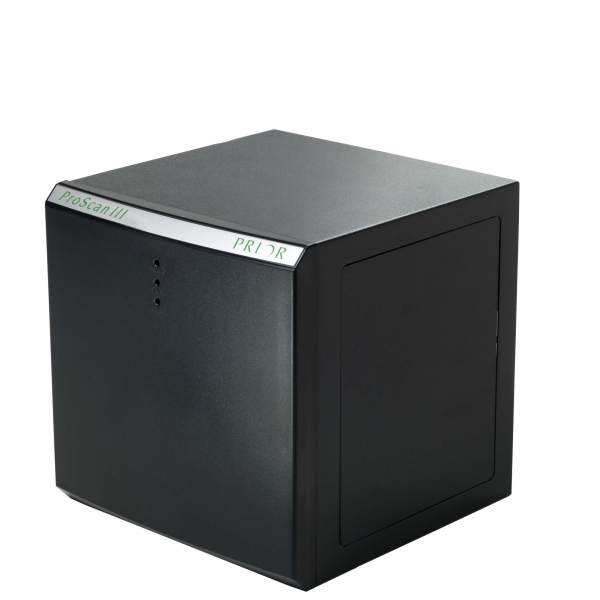

The compact and modular design of the ProScan® III system is capable of controlling up to 16 individual stepper motor axes including; a motorized stage, focus motor, three filter wheels and three shutters with the speed, accuracy and precision required by today’s highly automated and demanding applications. Communication to the controller has been improved, as FTDI USB connection is now available making the unit compatible with Windows, Linux and Mac. Four programmable TTL inputs and outputs allow the unit peripherals or external cameras to be controlled via TTL. The advanced internal software allows for simple control of all accessories via Prior’s new Interactive Control Center (ICC) Joystick, RS232 or USB, and a SDK is supplied for easy integration into third party software. Access to acceleration, speed and even drive current is also made available for more advanced users to allow total customization of the unit.

Controller Pro Scan III
Computer Interface 1 x USB 2.0 (HID or Virtual COM) 2 x RS232
Stage Speed Up to 300mm/s
Step Size From 0.01um for XY, 0.002um for Z
Repeatability (Focus/Stages) Typically <1um
Linear Scales 0.1um or 0.05um options available
Ball Screws Zero Backlash, ground recirculation, ball screws, 1mm, 2mm, 4mm or 5mm options available.
Limit Switches Adjustable in X and Y ,Optical and mechanical available in Z
Dimensions 177mm x 177mm x 177mm
Controller Weight 3kg (1kg for ancillary box)
