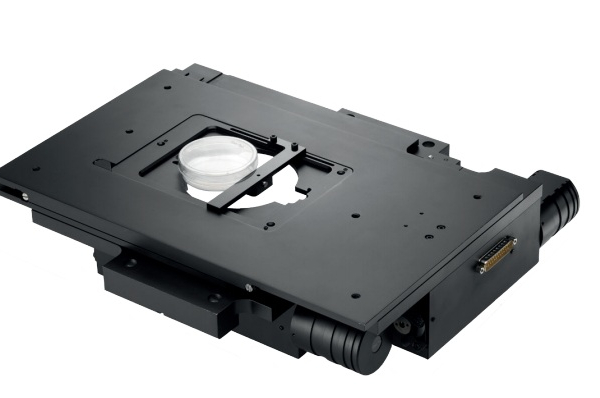

Motorized Stepper Stage For Inverted Microscopes H117

Motorized Stepper Stage For Inverted Microscopes H117

The H117 is a precise, reliable and repeatable stage ideal for a wide range of applications and compatible with a vast range of inverted microscopes. Controlled via Prior’s ProScan® III system, the H117 offers the end user the specifications needed to achieve exceptionally high quality imaging. By automating the microscope stage, the end user increases the speed of image collection, can accurately image exact regions of the sample, and program in specific stage movements. Stage automation also significantly decreases the risk of fatigue, strain injuries, and operator error.
Large, flat top surface area and travel range (114 x 75 mm) and a maximum speed of 15 mm/s

	um	um	mm/s	mm	kg	mm	SPR **	um res
	Uni-Directional Repeatability *	Min Step Size	Recomended speed	Max Travel Range	Weight	Ball Screw Pitch	Motor Type	Encoders
H117P2**	+/- 0.7 (0.2)	0.04	40 (100)	114 x 75	5	2	200	No
H117P1**	+/- 0.7 (0.2)	0.02	20 (50)	114 x 75	5	1	200	No

H117E2**	+/- 0.7 (0.2)	0.04	40 (100)	114 x 75	5	2	200	0.1
H117E1**	+/- 0.7 (0.2)	0.02	20 (50)	114 x 75	5	1	200	0.5
