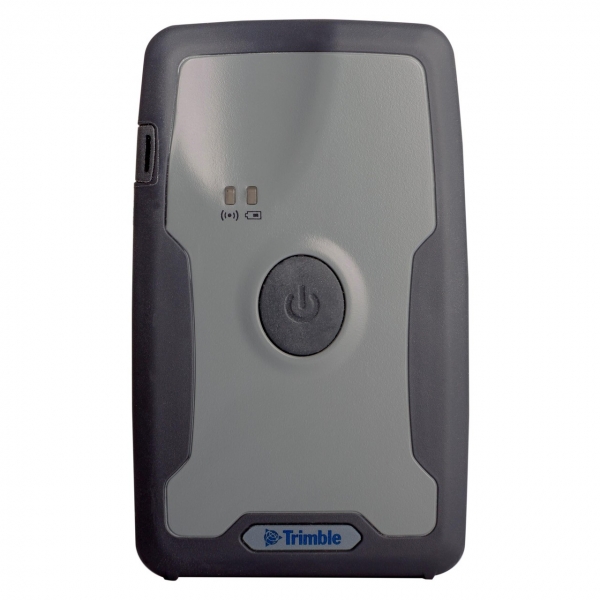

Trimble R1 GNSS receiver

The Trimble R1 GNSS is a multi-constellation receiver that supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite signals. The Trimble ViewPoint RTX corrections are delivered via cellular data network coverage or over satellite in remote locations—without the need for a traditional base station or VRS network—when using Trimble's Mapping & GIS software or API. In addition, the R1 receiver can leverage SBAS and VRS correction sources to achieve sub-meter accuracy.

With the evolution of smartphones and tablets, more field workers now have access to positioning technologies for geospatial data collection. The Trimble® R1 GNSS receiver is an ideal choice to collect data and inspect or manage assets using smart devices without an integrated high-accuracy GNSS receiver. Adding the optional Trimble ViewPoint™ RTX™ correction service to the R1 receiver enables users to achieve reliable sub-meter accuracy. The Trimble R1 receiver is compact and portable weighing only 6.5 ounces (187 grams). With an all-day battery life, the receiver can be carried in a vest pocket, attached to a belt using the optional belt pouch, or pole mounted. The receiver also integrates with Trimble TerraFlex™, Trimble TerraSync™ and Trimble Positions™ mapping and Geographic Information System (GIS) field software.
