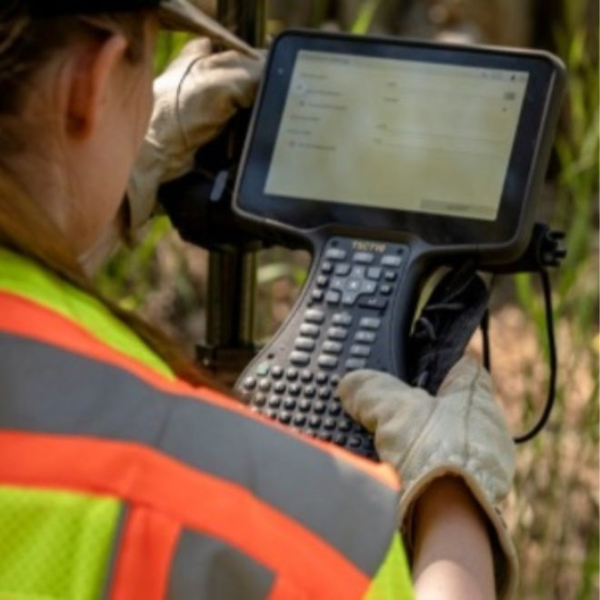

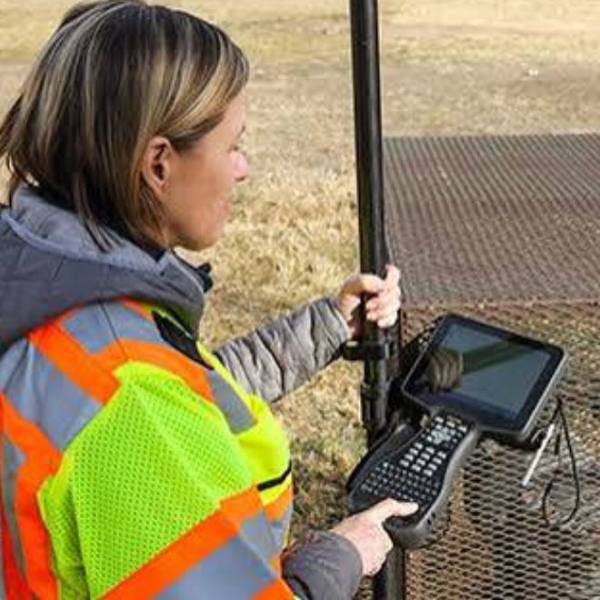

Trimble TSC710 is a premium 7-inch touchscreen controller with an integrated keyboard designed to maximize everyday productivity and speed up field surveying workflows. Its primary benefit is providing smooth, seamless operation powered by a high-performance processor that runs complex software effortlessly, combined with a high-capacity battery optimized for continuous field use. The unit is exceptionally rugged and durable, built to confidently handle harsh outdoor elements from mud and heat to extreme cold, while offering a large, sunlight-readable display for clear visibility. Furthermore, it features ultra-fast 5G mobile data connectivity, which makes transferring massive files incredibly quick and ensures a secure, seamless data exchange between the field and the office through Trimble software.

Technical Specifications of Trimble TSC710
the complete specifications include:

- Processor and Operating System: Powered by a high-performance Qualcomm QCS6490 processor, 8 GB of LPDDR4 RAM, and 128 GB of fast UFS flash storage, all running on the Android 14 operating system.

- Display and Screen: Features a 7-inch landscape HD (1280x800 pixels) projective capacitive multi-touch screen with an 800 nits sunlight-readable LED backlight, supporting stylus, finger, and glove input modes.

- Keyboard Interface: Equipped with an international backlit alpha-numeric and QWERTY keyboard layout containing 11 physical function keys along with numerous combination options using Fn, Shift, and AGr keys.

- Wireless Communications: Supports worldwide high-speed 5G WWAN mobile networks via a NanoSIM card slot, Wi-Fi 6, Bluetooth 5.2, and Near Field Communication (NFC).

- Rugged Durability: Meets or exceeds MIL-STD-810H environmental standards, boasting an IP6x dust-tight rating, an IPx8 waterproof rating allowing water immersion up to 1 meter for 2 hours, and transit drop resistance from 1.22 meters onto plywood and concrete while operating smoothly across extreme temperatures from -30 °C to +60 °C.

- Power and Battery Supply: Includes an internal 4600 mAh (7.2 V) Li-Ion battery and supports an optional user-replaceable battery pack, providing up to 10 hours of continuous runtime and achieving a full charge within 3.5 hours via a USB-C port.

- Camera and Positioning (GNSS): Features a 16 MP autofocus rear camera with an LED flash, alongside a built-in dual-frequency (L1 C/A) GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo, and QZSS constellations.

- Dimensions and Weight: Built with a rugged housing measuring 305.2 mm x 193.0 mm x 47.3 mm, with a total weight of 1270 grams excluding any optional removable batteries, brackets, or additional modules.

- Expansion Options and Software Compatibility: Features 2 Trimble Empower module bays supporting EM120, EM130, and EM940/450 radio modules, and works seamlessly with Trimble Access or Trimble Siteworks software (version 1.80 and later), as well as Trimble Connect and WorksManager platforms.
