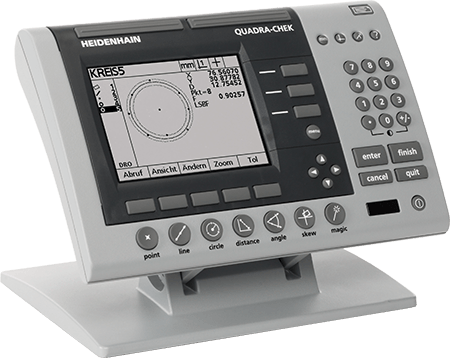

DATA PROCESSOR ND 1200 & ND 1300 QUADRA-CHEK SERIES

• This device is used to calculate and process measurements and can connect with Profile Projector and Measuring Microscope.
• Resolution is equal to 0.1 µm, showing measurement results of up to 4 axis (X, Y, Z & Q Axis)
• Easy-to-use command buttons can measure points, lines, circles, distances, arcs, angles, height, etc. and can be programmed to measure
• There is a Graphic Navigator to help identify the position of the measurement point, the next step.
• Send measurement data to Computer via Port RS-232
• Can connect to additional devices such as Printer, Footswitch, CCD Camera

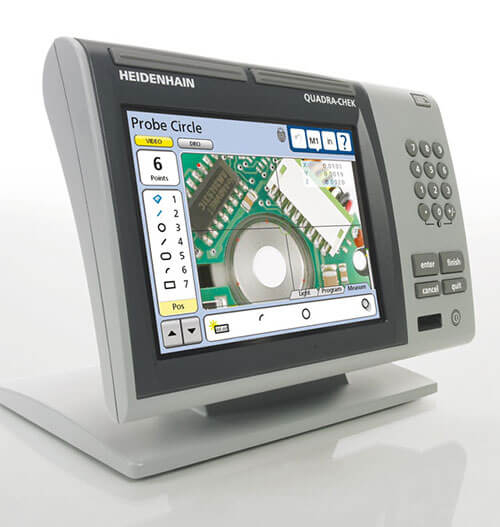

• The ND1300 is a color touch screen. It can be used with measuring tools that connect a CCD camera to display images on the screen (VDO Measuring). Measurement of workpieces with Automated Video Edge Detection.
