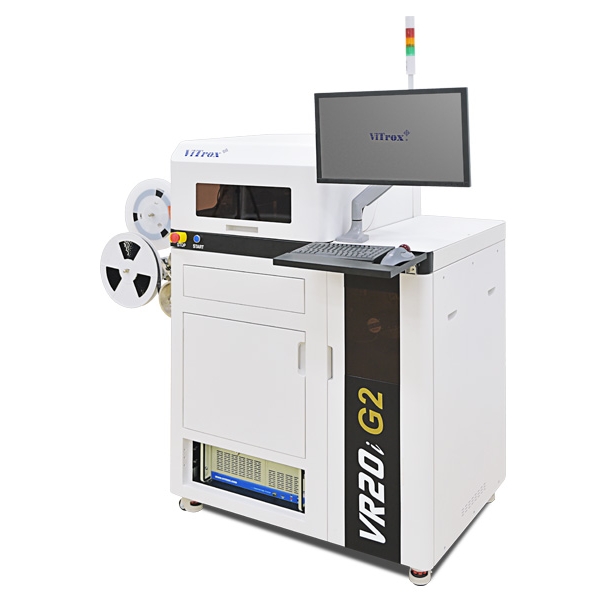

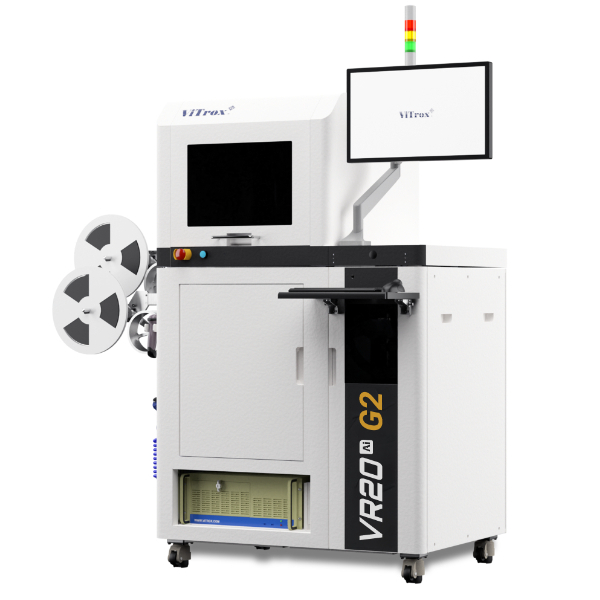

VR20Ai G2 : Post Seal Vision Handler

The VR20Ai G2 is a Post Seal Vision Handler specifically designed for Reel-to-Reel inspection applications. It supports carrier tape widths of 8, 12, 16, 24, and 32 mm, making it an ideal solution for high-precision inspection in automated manufacturing environments.

Equipped with advanced machine vision technology, the VR20Ai G2 delivers fast, accurate, and reliable post-seal inspection to detect defects, improve product quality, reduce manufacturing errors, and enhance productivity across electronics and semiconductor production lines.

Model Type

VR20Ai G2

Carrier Tape Width

8, 12, 16, 24, 32mm

UPH

2mm pocket pitch (8mm carrier tape width)	> 130K
4mm pocket pitch (8mm carrier tape width)	> 80K
8mm pocket pitch (12mm carrier tape width)	> 60K

12mm pocket pitch (16mm carrier tape width)	> 38K
16mm pocket pitch (24mm carrier tape width)	> 30K
24mm pocket pitch (32mm carrier tape width)	> 18K

Inspection Criteria	Tape Seal	Mark	Package	Lead	Bottom Carrier Tape
	Broken/ Open Seal Uneven Seal	Wrong Orientation Wrong/ Mixed Mark Missing Mark	Scratches Chipped Off	Lead Width Lead Pitch Lead Span Missing Lead	Dented Protrusion Crack
Accuracy	+/- 15 µm	N/A	N/A	+/- 15 µm	N/A
Min. Detectable Defect Size	N/A	N/A	150 µm x 150 µm (6mils x 6mils)	N/A	300 µm x 300 µm (12mils x 12mils)
Reel Size	178 mm (7”) to 330 mm (13”)
Package Type	SOT/SC, SOD, SOIC, QFN/MLP, LED
MTBA	> 60mins
MTBF	> 200 hrs
