LK CMM - MAXIMA

MAXIMA





Large Scale Bridge CMM (2m-4m)


The LK Metrology Maxima, large bridge CMM range, is based on the same proven design concepts of the high accuracy LK Metrology CMM product portfolio. Continuing the unique use of bonded ceramic materials, for the high performing beam and spindle construction, with near perfect stiffness-to-weight ratio and greater resistance to time, wear and temperature variations; providing consistent performance across all manufacturing environments even for very large-scale metrology applications.

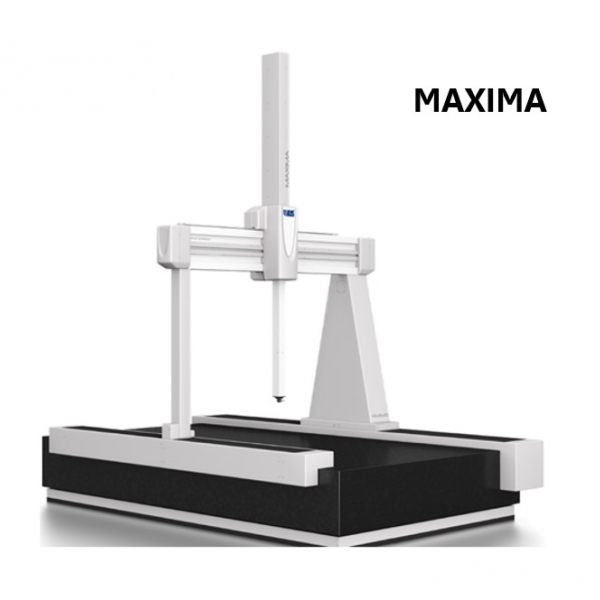

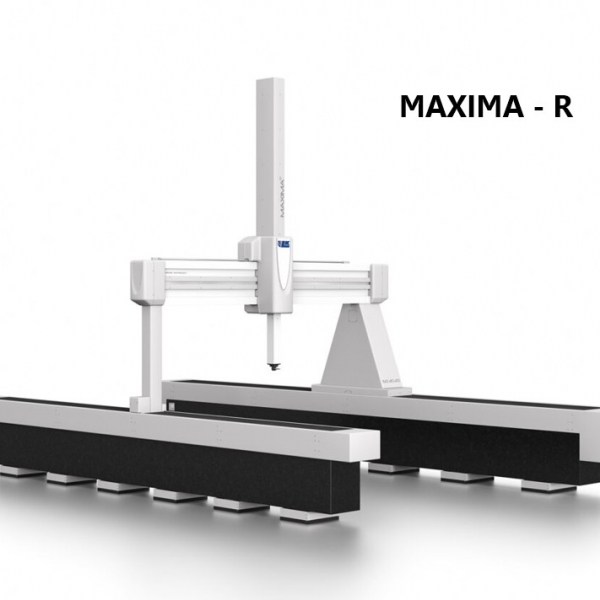

The Maxima range offers three machine variants with a standard work-table version, a twin runway design, namely the R version and as a single raised shoulder version for easier loading and unloading of very long mechanical components. All variants are based upon a common modular design concept providing high performance, reliability and an easy to maintain measuring system.

The unique LK Metrology, proprietary design, low gap high efficiency air bearings and zero hysteresis drive systems ensure the premium quality, high accuracy and throughput of Maxima CMM to meet the varying needs of manufacturers, today and in the future.

The Maxima systems range allows for high accuracy measurements usually only associated with much smaller measuring envelopes, while also supporting a variety of probing solutions including touch-trigger, contact scanning and non-contact laser scanning. This advanced multi-sensor ready technology, which in the SCANTEK version features RENISHAW REVO AND MODUS accessories, optimizes the CMM throughput and provides the opportunity to broaden the application scope to new materials and components as Customer needs change. Innovative software work-flows and intuitive features facilitate complex inspection tasks and boost productivity.

The Maxima range of solutions has a proven pedigree within aerospace, large-scale commercial vehicle applications and manufacturers of large performance critical components.

The Maxima Series is available in over 60 standard models, featuring 8 bridge sections incremental of 500mm, starting from size 30.20.15 to 80.40.30 – Volumetric Accuracy (µm) from: 3+L/350 – Repeatability from 3µm – Max. 3D Speed from: 611 mm/sec Max. 3D Acceleration from: 500 mm/sec2.
