Coordinate Measurement Module with VGStudioMax

Dimensional Measurement

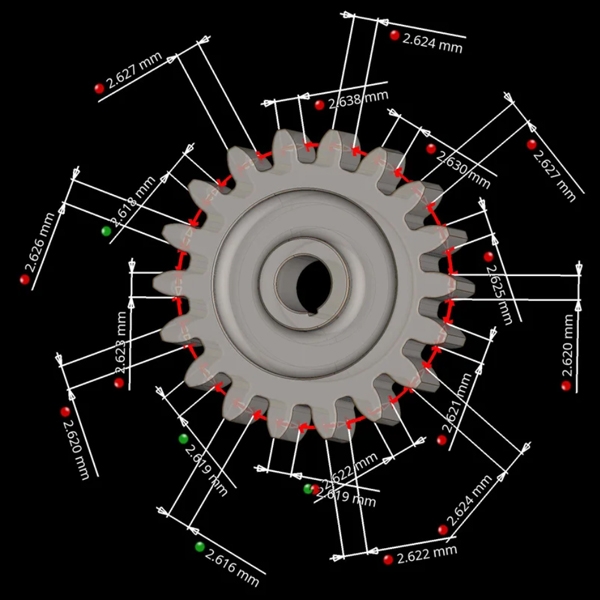

In Volume Graphics software, you can measure 2D and 3D dimensions with standardized or individual tolerance tables that even automatically set name, dimension, and tolerance by balloon number. Volume Graphics gives you all the functionality of a physical coordinate measurement machine, optical scanner, and more.

With the functions for dimensional measurement, you can:

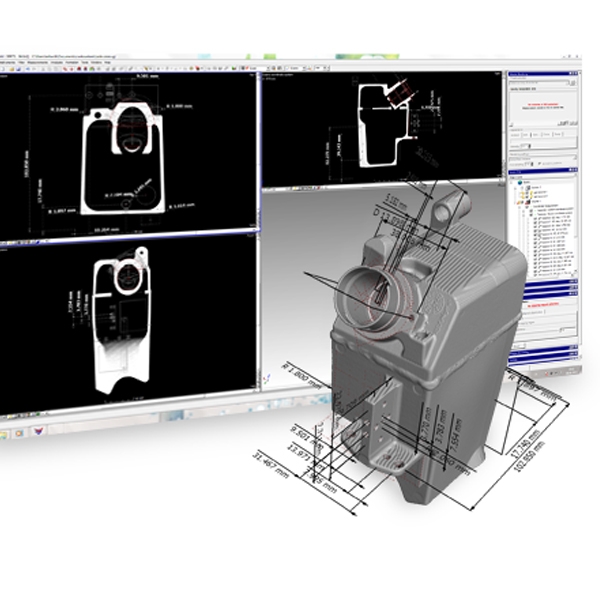

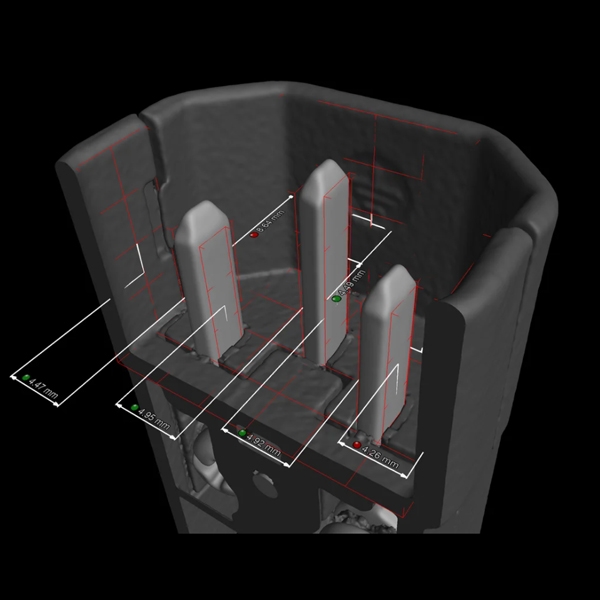

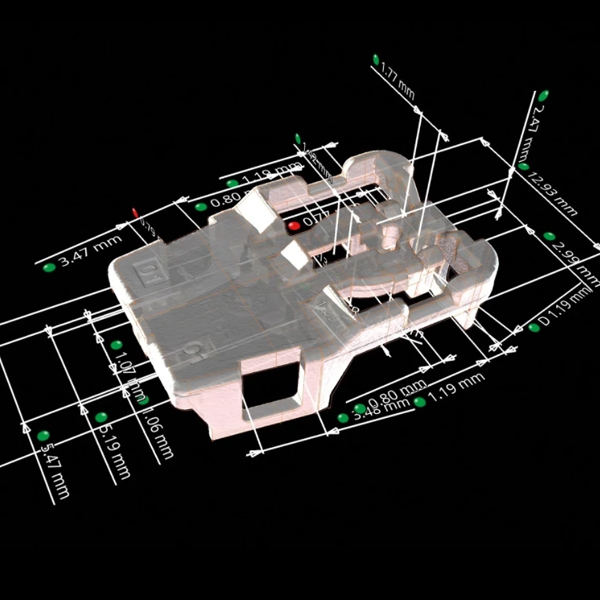

  • Create dimensions such as distances, angles, and radii in both in 2D and 3D, simply by selecting geometry elements on the screen, in the Scene Tree or in the tabular overview of all elements.

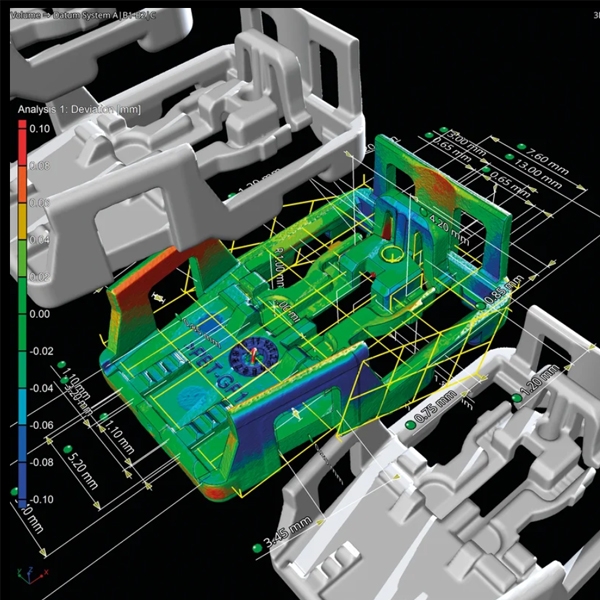

  • Assign tolerances from nominal CAD, PMI information, individual values or tolerance tables.
  • Extract and report values in any projection direction.
  • Use sophisticated filter functions for very large measurement plans to locate features and their children in the scene tree.
  • Use instruments for quick, point-to-point-based distance and angle analyses and annotations.
