  3. V310i

V310i

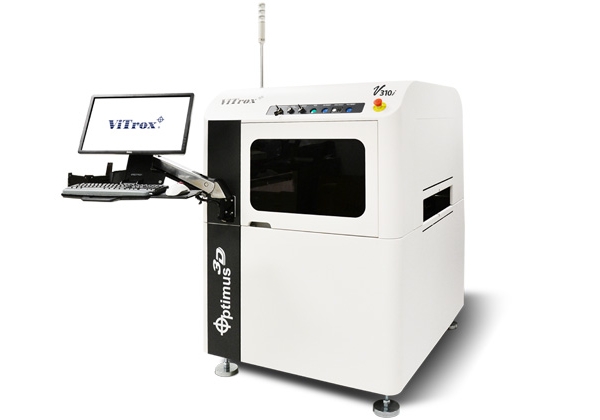

System V310i Optimus
System Performances
Inspection Functions Missing, XY Offset, Solder Height, Solder Area, Solder Volume and Bridge.
Board Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured
System Hardware 12MP 4MP
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size Default: 60mmx45mm @ 15µm telecentric lens
Option: 53mmx39mm @ 13µm telecentric lens
Option: 32mmx24mm @ 8µm telecentric lens		 Default: 40mmx40mm @ 20µm telecentric lens
Inspection Speed 12MP CoaXPress @ 15µm Resolution: Up to 94cm²/sec

12MP CameraLink @ 15µm Resolution: Up to 60cm²/sec"		 4MP CameraLink @ 20µm Resolution: Up to 55 cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology
Lighting Module Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension Standard FDL
Maximum PCB Size (L x W) 510mmx510mm (20”x20”)
(2 projectors or 4 projectors with extended casing)

450mmx510mm (17.7''x20'')
(4 projectors without extended casing)		 DL Equal: 510mmx235mm (20”x9.2”)
Single Lane: 510mmx420mm (20”x16.5”)
(2 projectors or 4 projectors with extended casing)

DL Equal: 450mmx235mm (17.7''x9.2'')
Single Lane: 450mmx420mm (17.7''x16.5'')
(4 projectors without extended casing)
Minimum PCB Size (L x W) 50.0mmx50.0mm (2”x2”) 50.0mmx50.0mm (2”x2”)
Maximum PCB Inspectable Area (L x W) 510mmx503mm (20”x19.8”)
(2 projectors or 4 projectors with extended casing)

450mmx503mm (17.7''x19.8'')
(4 projectors without extended casing)		 DL Equal: 510mmx228mm (20”x8.9”)
Single Lane: 510mmx413mm (20”x16.2”)
(2 projectors or 4 projectors with extended casing)

DL Equal: 450mmx228mm (17.7''x8.9'')
Single Lane: 450mmx413mm (17.7''x16.2'')
(4 projectors without extended casing)
Maximum PCB Thickness 最大PCB厚度 4mm (0.15") 4mm (0.15")
Minimum PCB Thickness 最小PCB厚度 0.5mm (0.02") 0.5mm (0.02")
Maximum PCB Weight 最大PCB重量 3kg 3kg
Top Clearance of PCB PCB上部间隙 50mm 50mm
Bottom clearance of PCB PCB底部间隙 70mm 70mm
PCB Edge Clearance 面板边缘 3.5mm 3.5mm
PCB Transport Height 875mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
Installation Specification
Power Supplies 100-120 V, 16A/200-240V, 8A Single Phase
Air requirement N/A
System footprint (Width X Depth X Height) 1060mmx1353mmx2111mm
Total system weight ~900kgs
