CMM-Manager is task-oriented, highly intuitive and offers powerful measuring and reporting capabilities. Main features are collision-free CAD-based path definition, virtual path simulation and accurate feature measurement for both tactile and vision probing

Key benefits

•   Intuitive - Task-oriented, user-friendly interface
•   Easy – Drag and drop program structure
•   Powerful - CAD based alignment, programming, measurement & reporting
•   Flexible - Unified CMM, arm & vision software
•   True 3D multi-sensor - Vision / Laser AF / Tactile / Rotary indexer

• Benefits & features

  Complete alignment toolbox

•   Canned alignments for simple part geometry
•   Advanced alignments for any part regardless of complexity or geometry
•   Create alignment from features measured by touch probe, vision sensor or laser AF
•   CAD import - 2D DXF / IGES - 3D IGES / STEP - 3D Native formats

• ---

  Efficient measurements

•   Pick CAD features to create collision-free probe paths for tactile and vision measurements
•   Seamless transition from touch probe, vision probe and laser AF measurements
•   Optimize measurement routine by drag-n-drop program editing

• ---

  Rotary indexer stage for optimal accessibility

    CMM-Manager supports rotary indexer that allow optimal accessibility for cylindrical or free form parts. The ultra-precise rotary indexer has different fixturing to accommodate  small to medium sized parts.

  ---

  Extensive reporting

  Print, save or output reports to external systems such as SPC software.

•   Excel, PDF, Text, HTML, CSV

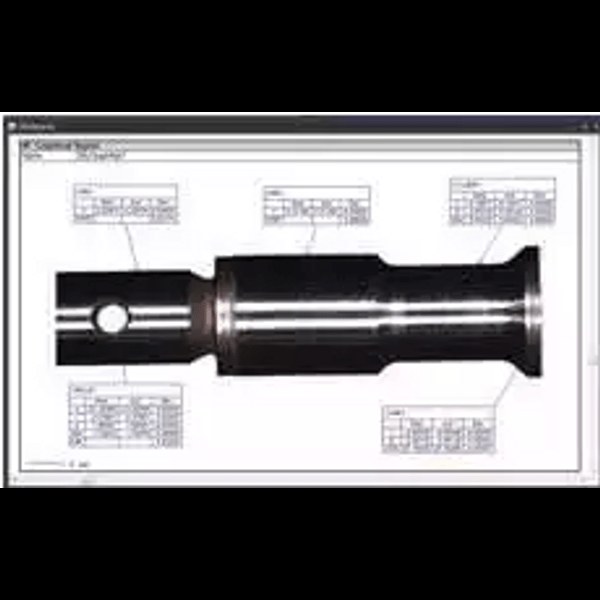

•   3D Color Graphical Reports
•   Cross section analysis
•   GD&T - ASME Y14.5 2009

• ---

  Automated program execution

•   Batch execution for multi-part inspection
•   Automated measurement for parts arranged in rectangular grid
•   Create custom program library with Shop Floor Launcher
